A one-degree temperature error can noticeably change a Brix reading, which may cost a craft brewery hundreds of dollars per batch. This makes accurate refractometer use important for homebrewing, winemaking, coffee roasting, and lab work.
Brix Refractometer For Plants
This practical guide explains what refractometers do, how they function, and how to apply them correctly. It offers step-by-step instructions for both handheld and digital models, along with advice on selecting the most suitable refractometer for your specific needs. It also discusses buying refractometers and sourcing them from established vendors such as Installation Parts Supply (InstallationPartsSupply.com), a factory distributor and industrial supplier serving the beverage industry and OEMS for more than two decades.
It provides quick guidance on obtaining Brix and Specific Gravity readings, performing calibration checks, and understanding the importance of temperature compensation and proper sample handling. Whether you use a field-ready model or a digital benchtop unit, this section helps you take accurate and repeatable measurements with confidence.
Important Takeaways
- Small temperature shifts can meaningfully change Brix readings; control temperature for accuracy.
- Using a refractometer applies across brewing, winemaking, honey testing, and salinity checks.
- Handheld and digital models suit different workflows, so choose the best refractometer for your use.
- Choose a digital refractometer if you need fast readings, saved data, and system integration.
- Purchasing refractometers from reputable suppliers such as Installation Parts Supply can provide better parts access and technical support.

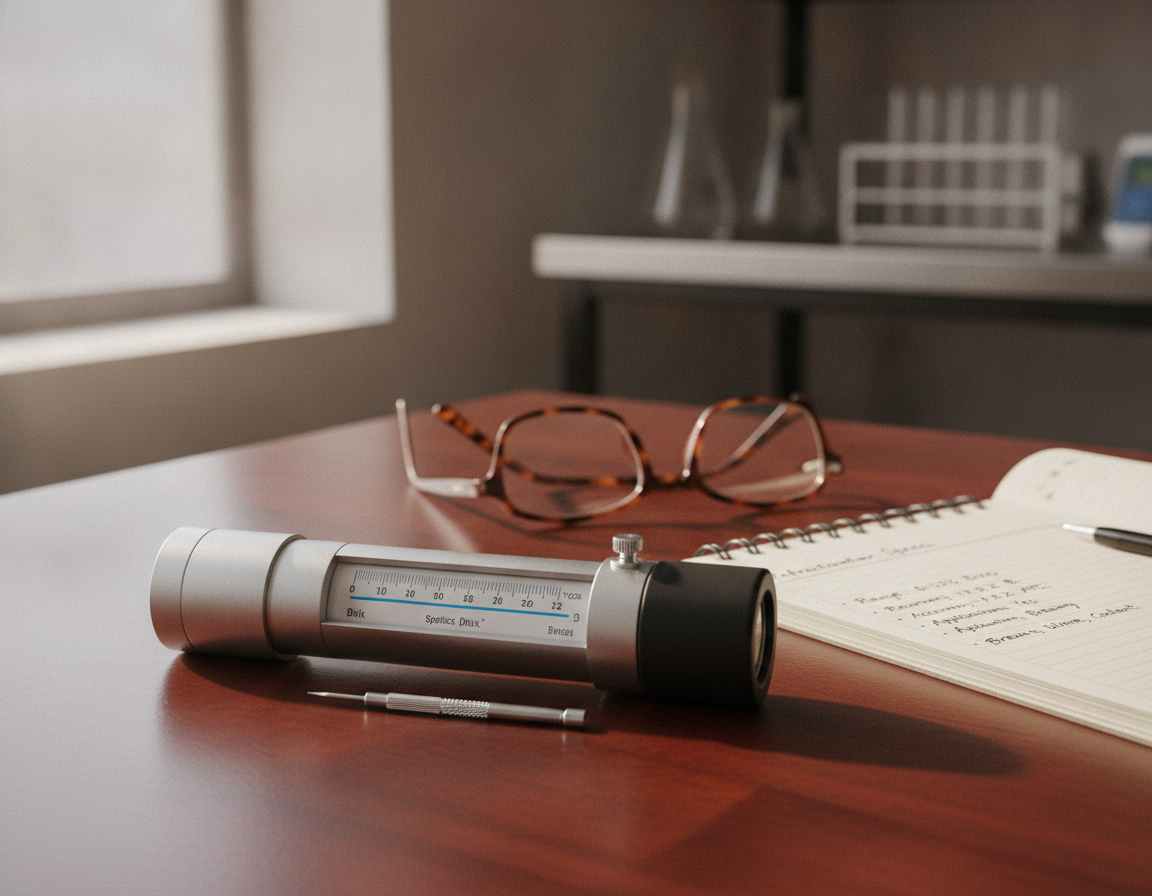

Automated Refractometers
What A Refractometer Is And How It Works
A refractometer reads the way light bends as it passes into a sample. This light shift reveals the refractive index, which helps show the sample’s makeup and concentration. Knowing the basic mechanics makes it easier to select the proper instrument and reduce errors.
Definition And Main Principle
The device works through Snell’s Law and the critical angle. When light passes into the sample, refraction creates a boundary between bright and dark areas. This visible boundary relates to a particular refractive index reading. Temperature and wavelength can influence results, which makes compensation or temperature control important.
Common Refractometer Units And Scales
Refractometers can show refractive index directly or convert it into application-specific units. For instance, Brix (°Bx) measures sucrose concentration in solutions like fruit, juice, and honey. In the brewing and winemaking industries, Plato (°P), Specific Gravity (SG), Oechsle (°Oe), and Baumé (B°) are commonly used. Salinity is commonly shown as PPT, ‰, or percent.
Common output choices include RI, % sugar, °Bx, °P, SG, and salinity. Users frequently rely on conversion tables or calculators for verification. It is advisable to select a scale that aligns with the sample and expected range for optimal results.
Types Of Refractometers And Common Uses
Handheld optical pocket models are designed for portability, requiring only a few drops of sample. These tools use an internal prism and a reticle viewed through magnification. Professionals and hobbyists alike find them invaluable in vineyards, apiaries, and homebrewing environments.
Digital models rely on LED illumination and a sensor to show readings on a display. They often include automatic temperature correction, simplifying data logging. Benchtop Abbe refractometers, on the other hand, excel in laboratory settings where high accuracy and broad wavelength control are critical.
Automatic and inline refractometers cater to food processing and industrial applications, facilitating high-throughput or continuous monitoring. Portable optical units can also be made for specific uses such as coolants and emulsions. For brewing, dual-scale tools that display Brix and SG or Plato can be especially convenient.
| Type | Typical Use | Primary Benefit | Common Range |
|---|---|---|---|
| Pocket optical | On-site tests: vineyards, beekeeping, homebrew | Small sample size, portable | Up to 32 °Bx |
| Portable digital | Rapid field and lab checks | Simple readings, temperature compensation | 0-85 °Bx, model-dependent |
| Abbe Benchtop | Laboratories and QC | High accuracy, controlled wavelength | Broad RI and concentration ranges |
| Automatic Or Inline | Food processing and production lines | Continuous operation, high throughput | Ranges matched to the process |
| Fluid-focused portable optical | Coolants, glycol, emulsions | Specialized concentration checks | Application-dependent |
Choosing The Right Refractometer For Your Needs
When selecting a refractometer, the first factor is the job it needs to handle. For instance, a handheld optical model is ideal for field fruit assessments, beekeeping, and quick homebrew evaluations. On the other hand, a digital handheld is more suitable for coffee roasting and craft brewing due to its rapid readout capabilities. Benchtop or inline units are preferred for lab settings, production lines, and glycol monitoring, where precision and consistency are critical.
Match the device type to the application
For homebrewers who need wort readings and ABV estimates, choose a model that displays °Bx and SG or Plato. Using a refractometer alongside a hydrometer can improve post-fermentation calculations. Professional breweries may prefer benchtop digital or inline refractometers for ongoing monitoring and system integration.
Honey and syrups necessitate a refractometer with a high Brix rating, typically between 60 and 90 °Bx. Coffee users tend to choose high-resolution digital handheld models for roast and extraction monitoring. For field testing plants and fruit, light optical or battery-powered handheld units make Brix checks fast and reliable.
Main features to compare
When choosing between models, compare measurement range and units including Brix, Plato, SG, and refractive index. ATC and the calibration method, mechanical or digital, are important comparison points. The device’s accuracy, repeatability, and sample volume indicate its reliability in practical scenarios.
Durability is a critical factor, given the tool’s use in breweries or on farms. Choosing between glass and sapphire prisms affects scratch resistance and cleaning convenience. For digital and automatic models, USB, RS232, or network connectivity options are essential for data logging. Features like quick calibration and low sample volume can significantly streamline routine tasks.
Budget and cost factors
Handheld optical refractometers are the most budget-friendly option, requiring no power and making them suitable for those on a tight budget. Handheld digital models fall in the mid-range, providing convenience through automatic correction and easy-to-read displays.
Benchtop, automatic, and inline units, while more expensive, offer superior accuracy, throughput, and integration, making them valuable in labs and production environments. Total cost should include calibration standards, spare prisms, and installation parts such as tubing, clamps, and fittings. Comparing reputable brands helps you find a good balance between features and value.
| Common Use | Suggested Type | Important Features | Common Cost Range |
|---|---|---|---|
| Plants, fruit, and beekeeping | Portable optical or digital handheld | Brix range 0-35, low sample volume, rugged | About $30 to $250 |
| Craft beer and homebrew | Handheld dual-scale or benchtop digital | °Bx, SG/Plato, ATC, easy calibration | $50 to $1,200 |
| Professional brewing and wine labs | Digital benchtop or inline | Precision, data capture, system integration | $1,000-$10,000+ |
| Coffee roasting and specialty coffee | Handheld digital | Detailed resolution, fast display, ATC | About $100 to $600 |
| Honey and high-sugar samples | High-Brix rated handheld or benchtop | Up to 90 °Bx, strong prism | About $80 to $2,000 |
How To Prepare Samples And Workspaces For Accurate Readings
A clean, calm workspace and careful sample preparation are essential for dependable results. Simple, repeatable setup steps can reduce refractometer testing errors. This ensures more consistent readings. Follow a short checklist before starting the process.
Cleaning And Sample Handling
Ensure the prism remains residue-free by utilizing distilled or deionized water and a lint-free cloth. Wipe the prism carefully after every use to reduce contamination and protect the instrument. For stubborn residue, use the solvent recommended by the manufacturer.
When working with viscous samples like honey or syrups, slight warming can make them easier to spread. This facilitates even distribution. Apply samples with pipettes, disposable droppers, or syringes for better control. Eliminate any bubbles and foam before recording the reading.
Temperature Compensation And Control
The refractive index is temperature-dependent, necessitating samples and the refractometer to be at ambient temperature. Many digital units automatically adjust for temperature changes. For critical work, confirm that this function is active and accurate.
For precise endeavors, complement refractometer readings with a reliable thermometer. Use the manufacturer’s calibration guidance when operating conditions differ from the advised range. Apply correction factors when needed to account for temperature differences.
Sample Volume And Even Mixing
Handheld models usually need only a few drops, while benchtop devices may require larger samples. For emulsions and suspensions, proper mixing helps prevent solids from scattering light and affecting readings.
For fermenting samples, clarify or filter them so refractometer and hydrometer readings align more closely. Following strong sample preparation habits, including mixing, impurity removal, and temperature matching, improves precision and reduces repeat testing.
Using A Handheld Refractometer Step By Step
Accurate readings are easier when refractometer use follows the same routine each time. This guide covers preparation, sample application, and result interpretation for different uses. It ensures reliable readings with handheld or pocket refractometers.
Preparing the refractometer
Use distilled water and lint-free tissue to clean the prism. Inspect the glass surface for residue or scratches that may influence the result.
Calibrate before use. With analog units, place distilled water on the prism and turn the calibration screw until the scale shows 0 °Bx or the required RI. With digital units, use the built-in routine to zero the device and verify ATC operation.
Check the light source and eyepiece focus on optical handheld refractometers. Proper light makes repeatable refractometer readings easier.
Applying the sample and taking the reading
Apply a few drops so the liquid covers the prism without spilling over. Close the daylight plate on optical units so the sample forms a thin film without air pockets.
With optical handheld units, view through the eyepiece and focus until the reticle appears clear. Align the shadow line with the scale and note the value.
For digital handheld units, add the sample and press the measurement button. Allow the display to settle before recording the value. Many pocket refractometer models show a temperature-corrected reading automatically.
Recording and interpreting readings
Record the numeric reading and sample temperature. Note the scale used, such as °Bx, SG, or Plato, so results remain comparable over time.
For brewing, use refractometer and hydrometer data together or use manufacturer calculators to estimate ABV. Use the R-D approach: refractometer reading (°Bx) minus the D correction from SG conversions. When both instruments are read at the same temperature, expect roughly ±0.5% ABV accuracy in most homebrew scenarios.
In food or quality control, compare readings to target specs or conversion charts. For honey and other high-Brix products, use scales and tables designed for dense syrups to avoid misinterpretation.
How To Use Digital And Automatic Refractometers
In today’s labs and production environments, precision and consistency are key. A digital refractometer provides fast data capture and reduces human error. Use a benchtop automatic unit for high-volume tasks or a portable digital unit for field assessments.
Device Setup And Powering
Initiate by adhering to the manufacturer’s guidelines for power activation, battery placement, and warm-up. Calibration with distilled water or certified solutions is essential, ensuring Automatic Temperature Compensation is operational.
Configure measurement units according to your operational needs, such as °Bx for a digital Brix refractometer, Specific Gravity, or refractive index. For automatic refractometer systems integrated into production lines, adjust pump rates, rinse cycles, and sample handling as per the supplier’s recommendations.
Automated Reading Process
Automated refractometers use LED illumination with image sensors or diode arrays to detect the refractive boundary. The system then uses algorithms to convert the signal into refractive index with temperature correction.
Many units can use autosamplers or pumps to load, measure, and rinse samples in sequence. Inline automatic systems make continuous concentration monitoring possible. Ensure sample lines are clean and devoid of air bubbles to prevent inaccuracies.
Configure sampling frequency and set alarm thresholds for out-of-spec values to prompt alerts. Use a portable digital refractometer for quick verification while troubleshooting automated systems.
Data Output, Logging, And Integration
Digital refractometers display immediate results. Export options often include USB, RS232, and Ethernet for data capture. Opt for units that timestamp readings and log temperature with each measurement.
Integrate logs with LIMS or SCADA for enhanced process control and quality record-keeping. Many prefer automatic refractometers with native export formats for streamlined data management.
| Feature | Portable Digital Refractometer | Automatic Benchtop Refractometer | Automated Inline Refractometer |
|---|---|---|---|
| Usual application | Field checks, QC spot tests | Lab batches, high-volume QC | Continuous process monitoring |
| Calibration approach | Manual with distilled water | Scheduled, automatic routines | Remote automated verification |
| Data export | Bluetooth or USB | USB, RS232, Ethernet | Ethernet, Modbus, SCADA |
| Sample process | Small cuvette or sample drops | Autosampler, pumps | Process lines with pumps |
| Ideal for | On-the-go checks, vineyards | QC laboratories and beverage R&D | Brewing, dairy, and syrup processing |
When planning installation, align fittings and tubing with your supplier’s specifications to match the refractometer’s flow and pressure requirements. A properly configured digital Brix refractometer can provide fast, verifiable results for production and laboratory teams.
How To Calibrate And Validate Your Refractometer
Accurate measurement depends on regular calibration and validation. Begin each session with a calibration check, record the results, and adhere to the manufacturer’s guidelines. This habit improves refractometer accuracy and reduces troubleshooting time.
Calibration methods and standards
Distilled or deionized water works as the main zero-reference. The instrument should show 0 °Bx or the required refractive index. For multi-point calibration, use certified fluids with known Brix or refractive index values within the device’s range.
Brix calibration and temperature checks
Temperature variations affect readings. Calibration at the recommended temperature or with Automatic Temperature Compensation is essential. Without ATC, apply manual corrections using the manufacturer’s tables.
Choose calibration standards close to your sample’s Brix range. Fruit juices require low-Brix solutions, while honey and syrups need high-Brix ones. Record each standard’s lot number and expiration date for traceability.
Verifying accuracy with reference materials
Regular verification with reference materials and certified fluids is important. For critical readings, compare results with a hydrometer or Abbe refractometer in a laboratory setting. This step increases confidence in refractometer validation, essential for precise work.
In brewing and winemaking, pair refractometer readings with hydrometer Specific Gravity checks to estimate ABV. Use validated calculators or tables to reconcile discrepancies. Proper method and verification can support combined results around ±0.5% ABV accuracy.
Keep a calibration log with dates, standard lot numbers, measured values, and adjustments. Replace calibration fluids when they expire or become contaminated. Regular documentation supports quality audits and proves ongoing refractometer calibration standard control.
Using A Refractometer In Brewing, Winemaking And Other Beverage Uses
Refractometers are valuable for brewers, winemakers, and roasters because they simplify sugar and soluble-solids measurement. This part focuses on using refractometers for wort, must, and related beverage testing. It also looks at refractometer use in brewing, wine, cider, and coffee.
Measuring wort and estimating ABV
Refractometer readings help track °Brix before fermentation starts. The refractive index changes as alcohol content rises, so hydrometer SG or a correction formula is needed for accurate ABV estimation. A common method uses the refractometer reading and hydrometer SG to calculate D = (SG – 1) × 1000, then applies R-D to reference tables. Keeping both samples at the same temperature helps reduce error.
Applications for beer, wine, cider and coffee
For winemakers, refractometers measure grape must in °Brix or degrees Oechsle to support harvest timing and sugar decisions. Brewers use °P or °Bx readings before and after boiling, then monitor fermentation with corrected refractometer data. Cider makers use Brix values to predict alcohol content and guide yeast or nutrient choices.
Coffee professionals rely on refractometers for TDS readings and extraction yield calculations. A dedicated coffee refractometer helps roasters and baristas measure brew strength and refine brewing parameters. For tanks and kegs, a beer refractometer supports fast field checks for beer and cider.
Homebrew and professional use cases
Homebrewers often prefer handheld or digital handheld models for their simplicity. Professionals, on the other hand, opt for benchtop or inline brewing refractometer systems for their accuracy and data logging capabilities. Draft systems and soda lines benefit from correct installation parts and routine maintenance that preserve sample quality.
| Common Use | Common Unit | Recommended Instrument | Typical Advantage |
|---|---|---|---|
| Homebrewing gravity checks | Brix or Plato | best refractometer for home brewing, handheld | Low cost and quick readings |
| Brewery production monitoring | Brix with temperature correction | benchtop digital brewing refractometer | Strong accuracy and data export |
| Wine harvest planning | °Brix / °Oechsle | portable brew refractometer | Fast vineyard field sampling |
| Cider fermentation planning | °Bx | brewing refractometer with stable temperature | Predictable alcohol content |
| Coffee extraction testing | TDS or extraction percentage | best coffee refractometer | Consistent cup strength and recipe tuning |
| Draft line checks | °Bx or solids percentage | beer refractometer, inline or handheld | Quick keg and line verification |
When choosing a refractometer for brewing, start with the exact measurement requirements. For homebrewing, a good refractometer should have clear scales and simple calibration. Coffee enthusiasts should choose a refractometer that reports TDS. For keg and tank checks, a rugged beer refractometer is useful for routine monitoring.
Specialized Applications: Honey, Glycol, Plants And Salinity
Specialty refractometry covers many tasks, from measuring honey moisture to checking coolant levels and plant ripeness. Choosing the right instrument and calibration range is critical for reliable and consistent measurements. The guidance below covers best practices for several niche refractometer uses.
Honey And Syrup Measurement
Because honey commonly falls between 60 and 90 °Bx, testing it requires a high-Brix instrument. Utilizing a syrup refractometer or a digital model designed for honey, with specific scales, facilitates rapid and precise moisture content determination. It is advisable to warm viscous samples slightly and stir them thoroughly before testing. Employing supplier-provided conversion charts is essential for translating Brix values into moisture percentages and quality grades.
Coolant And Glycol Concentration
Cooling systems need accurate concentration management. Digital glycol refractometers provide readings for ethylene or propylene glycol concentration by percentage or freezing point. Use handheld units for quick checks and automatic units for ongoing HVAC monitoring. Calibrate with the fluids recommended by the manufacturer to support consistent readings.
Plant, Juice And Salinity Testing
Diverse applications in field and laboratory settings demand specific ranges. Plant analysis often uses a 0 to 12 °Bx Brix refractometer to assess soluble solids and harvest timing. In juice and beverage processing, a refractometer for sugar content is indispensable for maintaining recipe consistency and quality control. For marine and food brine applications, a digital saltwater refractometer can measure in PPT or percent to confirm proper salinity for aquaculture and canning.
It is important to match the device range to the application and use the correct calibration fluid. Check reputable suppliers and product pages for model details and specifications before purchasing to avoid errors and support traceability.
Maintenance And Troubleshooting To Extend Instrument Life
Regular refractometer maintenance helps preserve lifespan and performance. Simple inspections and minor adjustments after use can help avoid major problems. Below are essential care steps, common problems, and signs that repair or replacement may be needed.
Routine Maintenance Checklist
Clean the prism after each use with distilled water and a lint-free cloth. For stubborn residues, use mild isopropyl alcohol, adhering strictly to the manufacturer’s guidelines.
Inspect the prism for chips, scratches, or visible wear. Inspect seals and O-rings on both benchtop and inline models to prevent leaks and contamination.
Regular calibration with distilled water and certified standards is critical. Maintain a calibration log with dates and readings so drift can be monitored.
Replace batteries in portable models before they fail. Verify firmware and software updates on digital units to guarantee full functionality.
Common Issues And Fixes
Inconsistent readings often result from a dirty, scratched, or air-bubbled prism. This can often be fixed by cleaning, drying, and recalibrating the instrument. Before measuring, confirm that the sample and instrument are at the same temperature.
An incorrect zero reading usually requires recalibration with distilled water. If zero drift continues, inspect prism alignment and optical surfaces for damage.
A blank display or digital error code often points to power or firmware trouble. Reboot the unit, confirm stable power, and clean sensors. Consult the manual for error-code definitions before opening or repairing the unit.
Malfunctions in inline and automatic systems often stem from blocked sample lines, faulty pumps, or clogged filters. Remove air locks, confirm rinse cycles function, and inspect tubing for wear. Keeping spare refractometer parts available can reduce downtime.
Repair Or Replacement Timing
Handheld units with irreparable prism damage or persistent calibration drift beyond the manufacturer’s specifications should be replaced. A crushed or deeply scratched prism is rarely restored fully through repair.
For benchtop and automatic units, contact the manufacturer or an authorized service center for sensor replacement or factory recalibration. Before authorizing repair, compare the estimate with replacement cost.
For draft beer, soda, or RO systems, track how long fittings and tubing have been in service. If repair costs approach the price of a new unit or your measurement needs change, consider replacement. Stock common refractometer parts and tubing so repairs are faster and instrument life is protected.
| Maintenance Item | Action | Timing | Effect On Life |
|---|---|---|---|
| Prism care | Use distilled water and lint-free wipe; alcohol if needed | After each use | Prevents drift and surface damage |
| Instrument calibration | Calibrate with distilled water and certified standards; keep a log | Per protocol or weekly | Preserves accuracy and instrument life |
| Seals & O-rings | Inspect regularly and replace worn parts | Monthly for heavy use | Reduces leaks and internal damage |
| Power and firmware | Replace batteries and update firmware | Check monthly and update as needed | Ensures reliable digital operation |
| Inline tubing & fittings | Inspect, clean, replace worn tubing and clamps | Monthly or per system schedule | Lowers downtime and reduces repair needs |
Where To Buy And Get Professional Support For Commercial Use
Begin by aligning the device with your operational needs. Refractometers are available from lab suppliers, beverage equipment distributors, and reputable online retailers. It is important to compare accuracy, Automatic Temperature Compensation (ATC), range, and connectivity options. This helps ensure the device fits handheld testing, benchtop analysis, or inline monitoring.
For additional hardware, consider the installation parts supply. Installation Parts Supply is a factory-authorized distributor offering refractometers and brewery installation supplies. These supplies include tubing, clamps, regulators, carbonators, and fittings. These components help maintain sanitary flow and protect sample integrity when a commercial refractometer is integrated into a draft system.
When setting up a draft or direct-draw system, choose compatible parts to prevent flow problems. Select draft beer installation parts that fit the taps, regulators, and dispensing lines in use. This selection minimizes contamination risk and ensures consistent readings over time.
For inline sensing or data integration, collaborate with experienced installers. Use professional beverage equipment installers and factory-authorized distributors for design, parts matching, and compatibility review. Their expertise ensures the commercial refractometer operates reliably under production conditions.
For complex setups, seek the advice of certified technicians. They can help integrate data logging with SCADA or LIMS, automated sampling, regulatory traceability, and calibration certification. Laboratory services can also validate procedures for ABV compliance and commercial labeling.
Use the table below to compare common buying choices and support options for a commercial beverage line.
| Supplier Option | Ideal For | Common Support | Associated Supplies |
|---|---|---|---|
| Laboratory suppliers, Ametek, Thermo Fisher | Benchtop accuracy and calibration needs | Calibration fluids and technical documentation | Reference materials and calibration fluids |
| Beverage equipment distributors, local pro dealers | Bar and taproom integrated systems | Parts matching and on-site installation | Taprite regulators, carbonators, fittings |
| Online retailers and specialty stores | Handheld and digital instruments for small labs | Customer reviews, return policies | Cleaning kits, sample cups, and cases |
| Factory-authorized distributors, Installation Parts Supply | OEM needs and commercial installations | Warranty support, factory parts, OEM components | Commercial refractometers and brewery installation supplies |
| Certified laboratory services | Compliance needs and traceable calibration | Calibration certificates, method validation | Documentation, certified reference materials |
Final Thoughts
Utilizing a refractometer provides swift and precise measurements of soluble solids, sugar content, salinity, and glycol concentration across various industries. This guide explained the basic principle behind refractive index measurement. It highlighted the importance of choosing the right instrument, whether handheld, benchtop, automatic, or inline. In food and beverage work, understanding refractometer applications and selecting the right tool helps protect quality. It can reduce expensive mistakes and support steady product quality.
Accurate results depend on good sample preparation, temperature control, and regular calibration. Small-scale brewers and winemakers often benefit most from handheld or digital handheld refractometers. For larger operations or continuous monitoring, benchtop, automatic, and inline models are often better suited. These offer advanced features such as data logging and integration, catering to the demands of production scale and regulatory compliance.
Where possible, combine refractometer readings with hydrometer checks, especially for brewing and winemaking ABV calculations. This cross-checking supports quality control by confirming results. Keeping detailed calibration and maintenance records is also important. Trusted suppliers can help with parts and installation that support long refractometer life and dependable operation. Adhering to these guidelines will facilitate the acquisition of consistent, reliable data in any beverage or food context.
